BLT KIT, MY22 LEVO FSR (GEN.3), SUSPENSION PIVOT BOLT KIT (W/ PIVOT SPACERS)
1400 kr

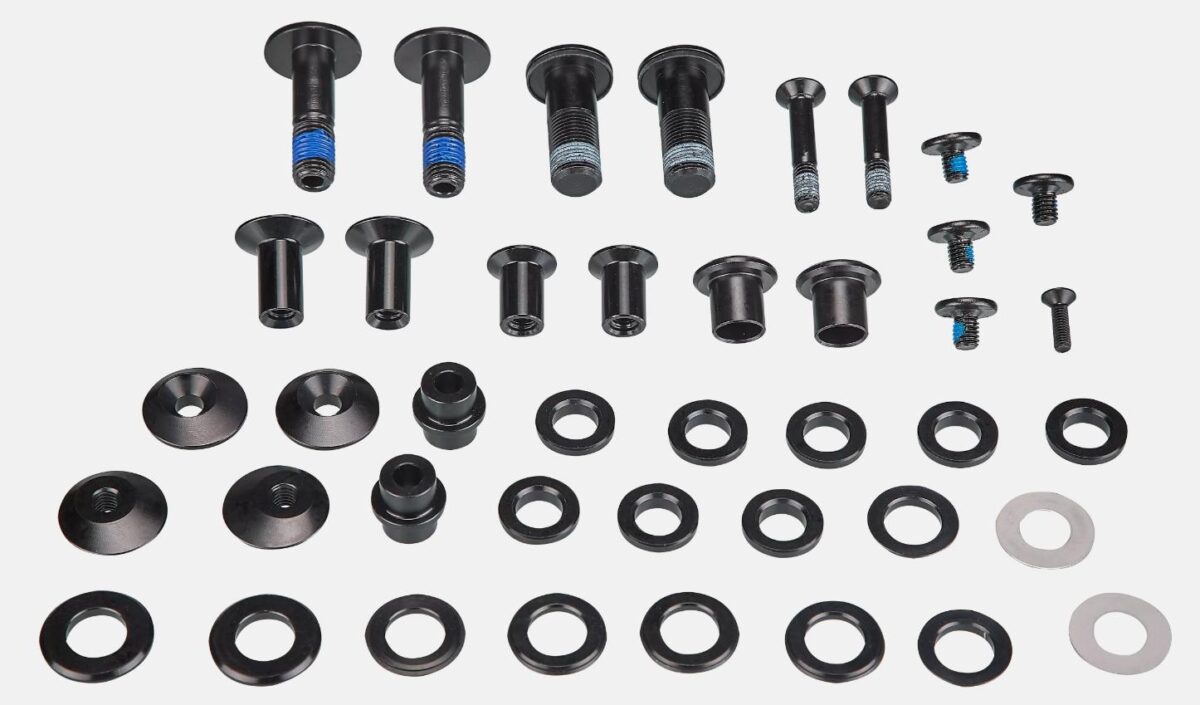

Suspension pivot bolt kit for 2022 Levo (Gen.3) bikes with all bolts and spacers
Main Pivot Driveside Bolt: Reverse Thread – 10mm W x 35mm L – Steel – Torque: 210 in-lbf (24 Nm) – 1 pcs.
Main Pivot Non-Driveside Bolt: 10mm W x 35mm L – Steel – Torque: 210 in-lbf (24 Nm) – 1 pcs.
Shock Link to Seatstay Pivot Bolt: 6mm W x 8mm L – Alloy – Torque: 71 in-lbf (8 Nm) – 2 pcs.
Shock Link to Seatstay Pivot Axle: 12mm W x 22.4mm L – Alloy – Torque: 71 in-lbf (8 Nm) – 2 pcs.
Shock Link to Shock Extension Pivot Bolt: 6mm W x 8mm L – Steel – Torque: 71 in-lbf (8 Nm) – 2 pcs.
Shock Link to Shock Extension Pivot Axle: 12mm W x 8mm L – Alloy – Torque: 71 in-lbf (8 Nm) – 2 pcs.
Shock Link to Seat Tube Pivot Bolt: 12mm W x 24mm L – Alloy – Torque: 185 in-lbf (21 Nm) – 2 pcs.
Forward Shock Eye Bolt: 8mm W x 26mm L – Steel – Torque: 90 in-lbf (10 Nm) – 1 pcs.
This kit also includes Geo Adjust Flip Chip and all Spacers. Refer to Schematic for detail.
Sold Seperately: Rear Shock Mounting Kit: S210500011 – BLT KIT, MY22 LEVO FSR (GEN.3), REAR SHOCK MOUNTING HARDWARE KIT
